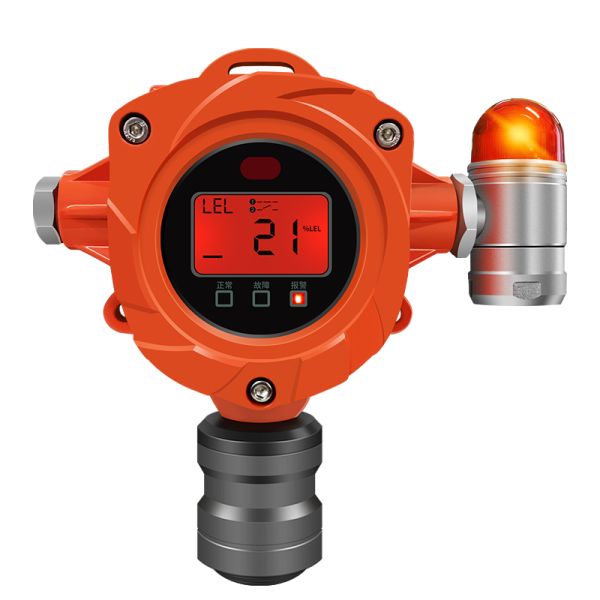

IP67 Online Hydrogen Fluoride Gas Detector Hf Gas Leak Detector with Alarm
Product Description:
The YA-D400 series point type gas detector is a common sight in dangerous working environments such as chemical plants, petroleum refineries, metallurgy factories, and liquefied gas stations. These detectors are also used in painting operations and gas transmission and distribution. They are designed to detect toxic or combustible gases that are easily leaked indoors or outdoors.
Our company has developed an easy-to-operate gas detector that is widely used in these industries. The YA-D400 series can be combined with our gas alarm controller, the YA-K series, to form an industrial gas alarm system.
This product can be installed in a variety of ways, such as wall-mounted, tube type, scaffolding type, and ceiling type. The controller is used to upload the data collected by the gas detector to the single chip microcomputer, where the data is processed and displayed. It also has output control functions for the convenience of the operators.
Features:
Below are some features of our gas detector:
- The detected gas concentration can be displayed on the screen.
- The device comes with fault alarm, as well as high and low alarm.
- The field screen display includes backlight, larger and clearer fonts, and a red backlight that turns on when the device has an alarm.
- The device has infrared remote control input, which avoids the need for opening the cover and makes operation more convenient.
- We provide support for three different sound and light output, corresponding to fault, low report, and high report.
- There are built-in functions for zero, calibration, and testing.
- The device can output DC4-20mA standard signal.
- We support RS485, two buses, and LoRa for flexible communication.
- The device is equipped with a high-performance ARM microprocessor for easy operation.
- There are three relay (250V 5A) output for automatically opening the fan and solenoid valve.
- We provide storage for up to 40 high and low alarm records.
- Our toxic gas detector can achieve mg/m³ and μmol/mol conversion.
Technical Parameters:
| Power Supply: | Power Supply 24V |
| Combustible: | ≤4W |
| Oxygen/Toxic: | ≤3W |
| Accuracy: | ±5%FS (sensor Determined) |
| Detection Range: | 0-100 Ppm |
| Warranty: | 1 Year |
| Certifications: | CE, FCC, ROHS, SIL, ATEX, ISO9001 |
| Detection mode: | Diffused |
| Alarm Type: | Audible And Visual |
| Sensor Type: | Combustible: Catalytic Combustion Type; Toxic: Electrochemical Type (imported Sensor) |
| Version: | English |
| Humidity: | Less Than 95% RH |
Industrial Gas Leak Detector, Gas Leak Detector, H2S Gas Detector
Applications:
Thanks to its passive contact output with a capacity of 5A/220V (3 PCS), the YA-D400 can be easily integrated with other systems to provide effective monitoring of toxic gases. Its powerful alarm system, which includes both audible and visual alarms, ensures that any gas leaks are detected quickly, no matter how busy or noisy the environment.
The YAOAN YA-D400 Toxic Gas Detector is designed to be easy to install and operate. It is powered by a power supply of 24V, with a maximum power consumption of ≤3W for oxygen/toxic gases and ≤4W for combustible gases. This makes it an energy-efficient option for those looking to monitor their gas consumption and reduce their energy bills.
Whether you need to monitor toxic gases in an industrial setting, a laboratory, or a hospital, the YAOAN YA-D400 Toxic Gas Detector provides a reliable and effective solution. Its high detection range, powerful alarm system, and easy installation make it an ideal choice for anyone looking for a gas meter that they can rely on to keep their environment safe and secure.
Support and Services:
The Toxic Gas Detectors product technical support and services include:
- 24/7 technical support hotline
- Product installation assistance
- Product training and education
- Product maintenance and repair services
- Calibration and testing services
- Upgrades and replacement parts
Our team of experienced technicians is dedicated to providing the highest level of support to ensure the proper functioning and accuracy of your toxic gas detectors. We also offer customized service plans to meet your unique needs and requirements.
FAQ:
Q: What type of gas can the YAOAN YA-D400 detect?
A: The YAOAN YA-D400 can detect toxic gases such as carbon monoxide, hydrogen sulfide, and nitrogen dioxide.
Q: How does the YAOAN YA-D400 alert users of potential gas leaks?
A: The YAOAN YA-D400 has both visual and audible alarms that will activate when toxic gas levels reach a dangerous level.
Q: What is the power source for the YAOAN YA-D400?
A: The YAOAN YA-D400 is powered by a rechargeable lithium-ion battery that provides up to 10 hours of continuous use.
Q: Can the YAOAN YA-D400 be used in industrial settings?
A: Yes, the YAOAN YA-D400 is designed for use in industrial settings and is built to withstand harsh environments.
Q: Where is the YAOAN YA-D400 manufactured?
A: The YAOAN YA-D400 is manufactured in Shandong, China.
